How to Spec a Battery Pack for a Motorsport EV

To spec a battery pack for a motorsport EV, work backward from the race itself: define the longest stint, the peak power and regen the car will pull, and the thermal envelope it must survive, then size usable energy, voltage, C-rate, and cooling to hold those numbers flat for the full stint. A race pack is almost always power-limited and thermally constrained, not range-limited, so the build is driven by how hard and how long you push, not by total distance. Get the energy, power, and cooling math right first, and cell choice and packaging follow.

The difference between a pack that posts one fast lap and one that holds pace from green flag to checker is rarely the cell. It is how well the whole system, energy budget, current path, cooling, and the management layer, is matched to the actual race demand. Below is the order we work in when a customer brings us a motorsport program.

Start with the duty cycle, not the cell

Before anyone names a chemistry, you need a power-versus-time trace of a representative lap and a full stint. That trace tells you average power (which sets energy) and peak power (which sets C-rate and busbar sizing). Sprint, endurance, hillclimb, and rallycross all produce wildly different traces, and a pack tuned for one will underperform in another. Logged data from a sister car or a simulation is worth more than any spec-sheet headline. If the duty cycle is wrong, everything downstream is wrong.

Size usable energy from the stint

Multiply average lap power by stint duration to get a baseline energy figure, then add margin. You never use 100 percent of a pack: leave room for end-of-stint voltage sag, thermal derating, and a safety reserve so the car does not fall off pace in the final laps. Usable energy, not nameplate capacity, is the number that matters. Oversizing for range adds dead weight that hurts lap time, so the goal is the smallest pack that reliably finishes the stint with margin to spare.

Set voltage and C-rate for peak power

Pack voltage is chosen with the inverter and motor: higher voltage lowers current for a given power, which means thinner conductors, less resistive loss, and less heat. From peak power and usable energy you derive continuous and peak C-rate. This is where premium 21700-based modules earn their place, because sustained high C-rate without sag or excess heat is exactly what cheap cells cannot do. EVDrive's high-performance battery-system engineering experience is grounded in this constraint, with current paths and interconnects sized for race-duty peaks rather than catalog averages.

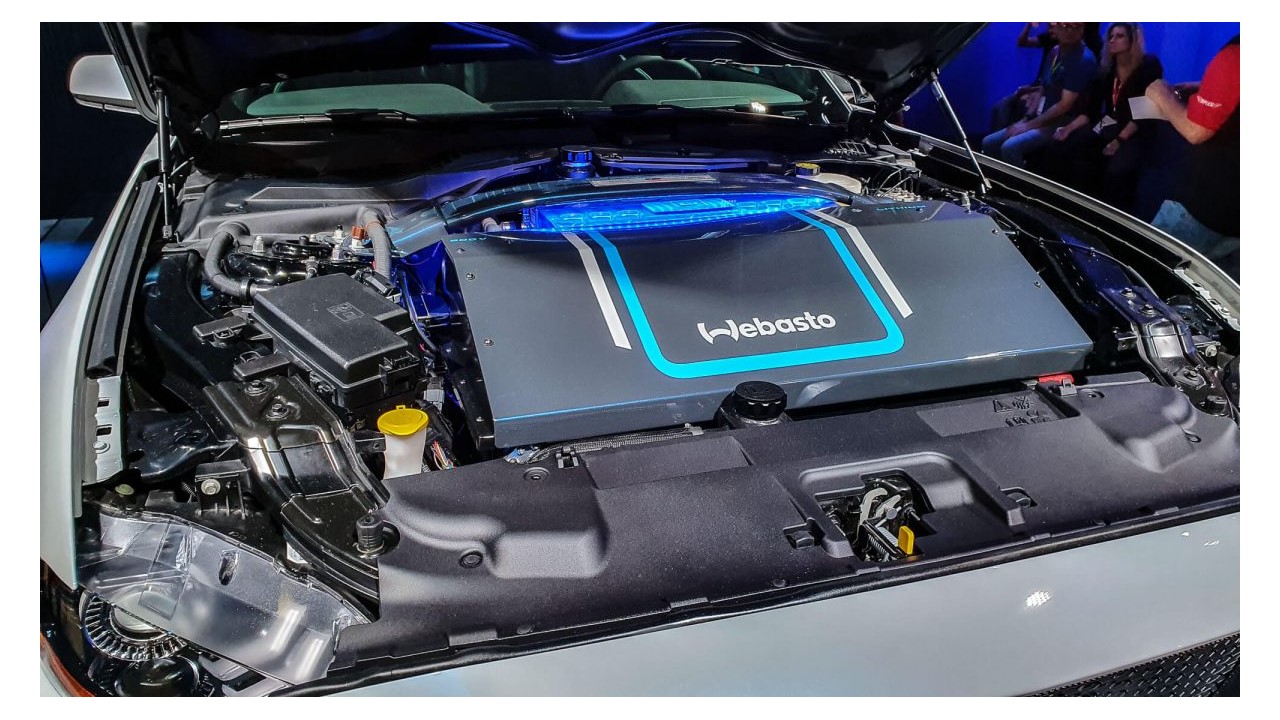

Engineer the thermal path early

Heat is the quiet killer of race-pack performance. Sustained high C-rate generates it faster than a passive pack can shed it, and once cells climb past their happy band the BMS derates to protect them, costing you power exactly when you want it. That is why serious motorsport packs run active, usually liquid, cooling designed alongside the electrical layout, not bolted on afterward. The cooling system is a primary design input, not an accessory. Plan coolant routing, plate contact, and flow before the module layout is frozen.

Make the BMS a performance tool

In a race pack the management system is not just a safety device, it is how you extract the last few percent and protect the asset under abuse. Accurate per-cell monitoring, tight balancing, fast fault response, and clean data logging let you push closer to the limit with confidence. BetterBMS gives demanding programs a configurable control platform whose monitoring, protection, and thermal logic can be tuned to the battery architecture it manages. A BMS designed with the pack behaves predictably under sag, heat, and hard regen in ways a generic, retrofitted board cannot.

Validate, then leave headroom

Once the design is on paper, validate it against the worst case, not the average lap: the hottest ambient, the longest stint, the most aggressive driver. Build in headroom on current, temperature, and state of charge so a bad day does not become a DNF. The best motorsport packs look slightly conservative on a dyno and perfectly matched on track, because real racing lives in the margins you remembered to leave.

If you are scoping a program now, the fastest path is a short conversation about your duty cycle and target specs. You can start a quote conversation and a real EVDrive engineer will work the numbers with you.
